Features
| Warranty | 2 years |
|---|---|
| Maximum continuous working pressure | 500 kPa |
| Recommended pressure range | 300 kPa |
| Maximum continuous working temperature | 70 °C |
| Frontplate width | 80 mm |
| Frontplate height | 80 mm |
Frigitorium is engineered around a curated set of specialist spray systems — each selected for its role in shaping the chilled continuous-flow atmospheric environment. Below: the precise technical specification for every component in the system.
Spray Pattern · Mist

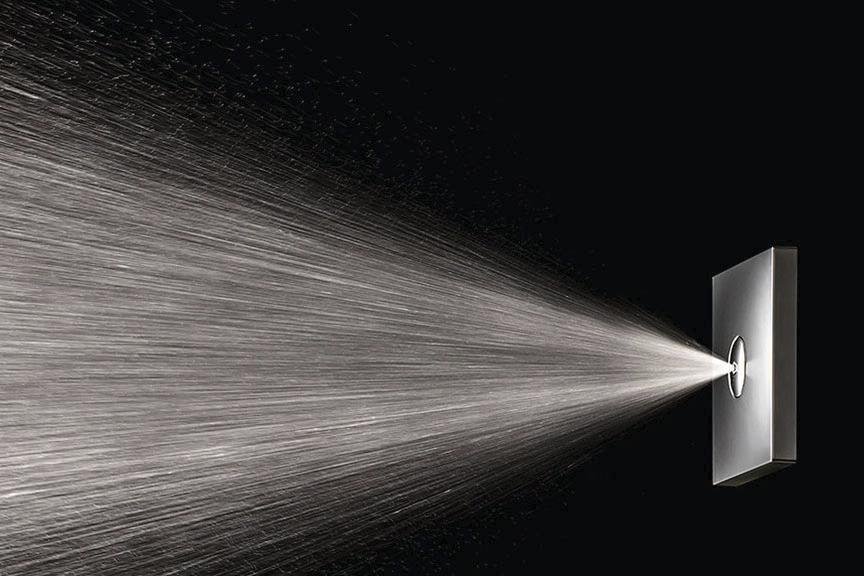

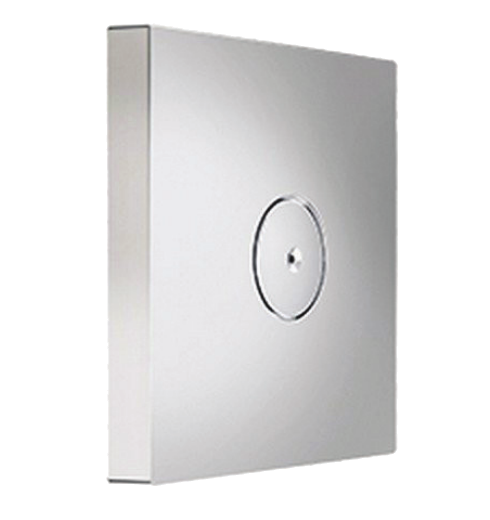

⁂Frigitorium is specified with the Geyser Steam Mist Body Jet Square, a premium spray system designed to create a fine, enveloping mist rather than a conventional shower stream. In the Frigitorium environment, multiple mist body jets are positioned to deliver a continuous atmospheric flow across the body, creating the sensory effect of cold immersion without requiring full submersion.
The system's compact square frontplate, chrome finish and fine spray pattern make it well suited to a clean, modern recovery space, while its technical specification supports integration into a chilled continuous flow shower environment.
| Warranty | 2 years |
|---|---|
| Maximum continuous working pressure | 500 kPa |
| Recommended pressure range | 300 kPa |
| Maximum continuous working temperature | 70 °C |
| Frontplate width | 80 mm |
| Frontplate height | 80 mm |
Minimum total water consumption for the system at recommended operating pressure, scaled by number of installed body jets.
Approximate flow rate per single jet across the supported pressure range. The recommended operating pressure of 300 kPa is indicated.
Spray Pattern · Directed Arc

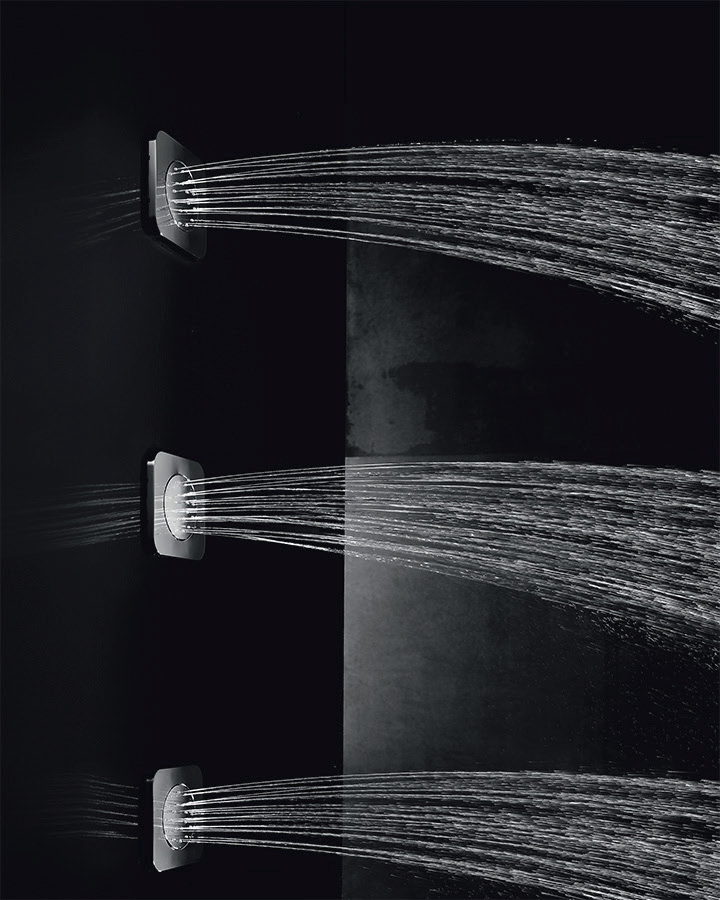

⁂The Geyser Steam Soft Body Spray sits in counterpoint to the mist body jet: where the mist generates an enveloping atmosphere, the soft spray delivers a wide, directed arc of water that physically contacts the body. Installed at multiple heights through the Frigitorium environment, several units together create a continuous, sculpted band of horizontal spray.
The soft spray is offered in two formats — a square frontplate (125 × 125 mm) and a round frontplate (Ø 130 mm) — and is available across the full Geyser Steam finish range. Specification of the appropriate format and finish is made on a per-installation basis to align with the surrounding material palette.
| Warranty | 2 years |
|---|---|
| Maximum continuous working pressure | — |
| Recommended pressure range | — |
| Maximum continuous working temperature | — |
| Frontplate width (square) | 125 mm |
| Frontplate height (square) | 125 mm |
| Frontplate diameter (round) | Ø 130 mm |
| Spray angle | 20 ° |
Specification of finish is made per-installation to align with the surrounding material palette. Chrome remains the default specification for the canonical Frigitorium environment.
Minimum total water consumption for the system at recommended operating pressure, scaled by number of installed body sprays.
Approximate flow rate per single soft body spray across the supported pressure range. The flow curve plateaus near 3.5 L/min beyond 3 bar.
Spray Pattern · Continuous Sheet

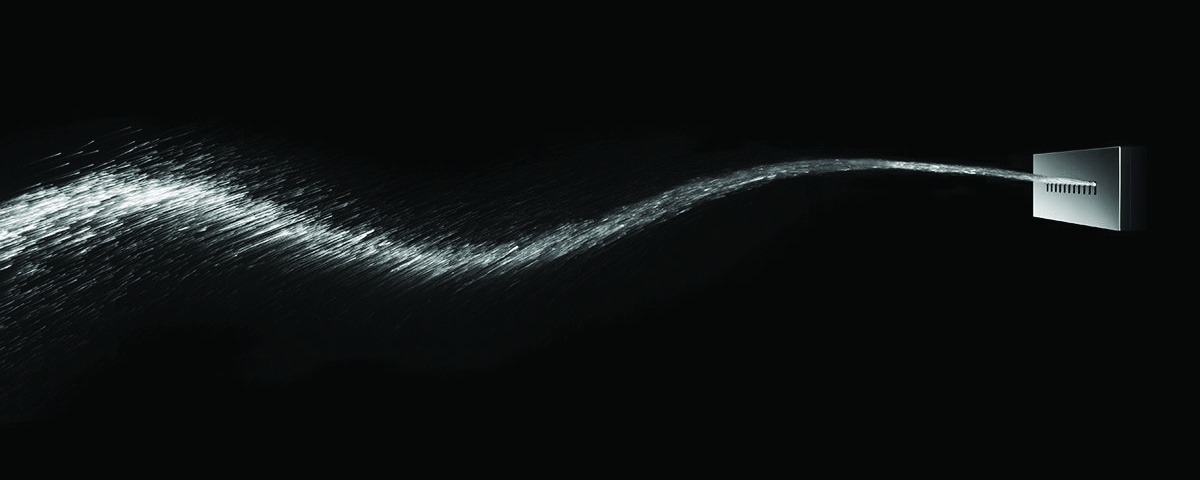

⁂The Geyser Steam Wave Jet is the signature instrument of the Frigitorium environment — a long horizontal nozzle bar that projects a single, continuous, curving sheet of water rather than individual streams. Where the mist body jet defines atmosphere and the soft body spray delivers directed coverage, the wave jet is the sculptural element: a defined, visible plane of water that draws across the space.
The 250 mm frontplate carries a precisely-engineered row of orifices that fuse output into a coherent sheet at recommended pressure. The unit is supplied in a single brushed stainless steel finish, intended to read as a deliberate architectural mark within the Frigitorium interior.
| Warranty | 2 years |
|---|---|
| Maximum continuous working pressure | 500 kPa |
| Recommended pressure range | 300 kPa |
| Maximum continuous working temperature | 70 °C |
| Frontplate width | 250 mm |
| Frontplate height | 80 mm |
| Spray angle | 30 ° |
Minimum total water consumption for the system at recommended operating pressure, scaled by number of installed wave jets.
Approximate flow rate per single wave jet across the supported pressure range. Output plateaus around 8.5–9 L/min beyond the recommended 300 kPa operating point.
Spray Pattern · Atomised Cloud

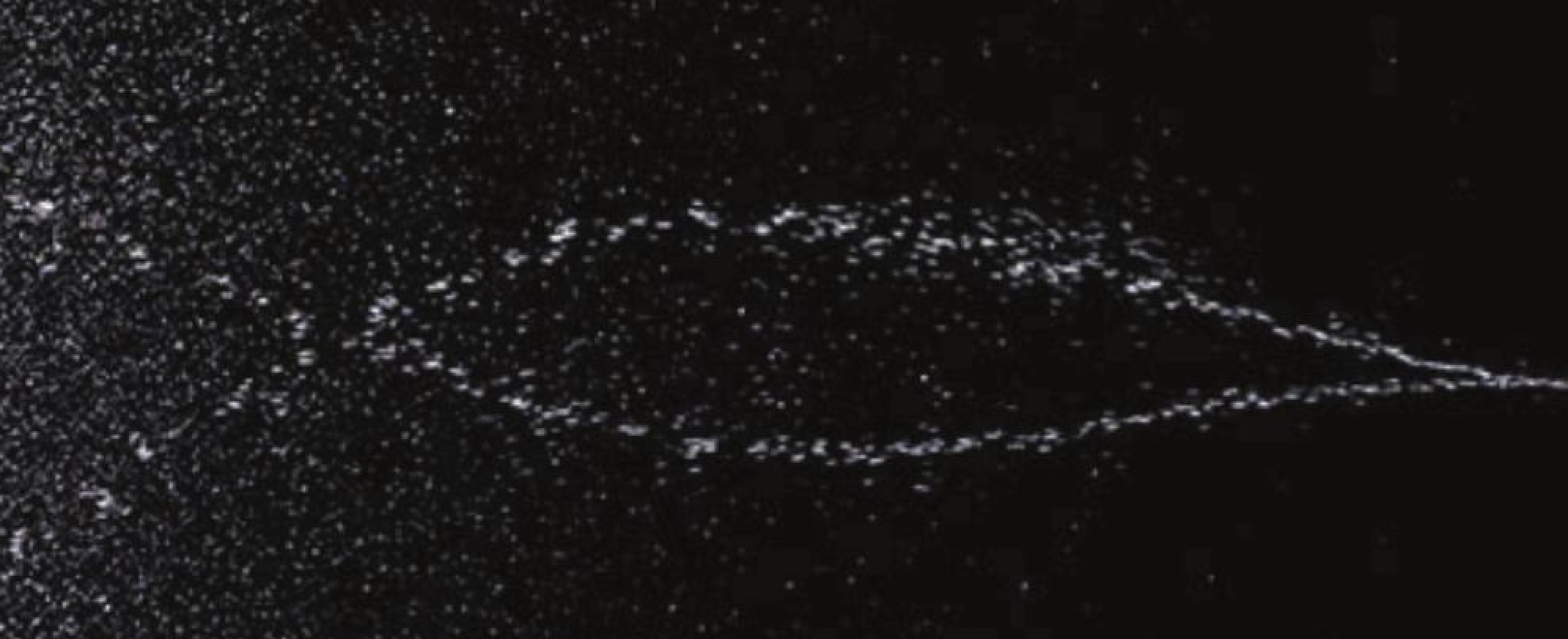

⁂The Geyser Steam Spin Soft Body Spray uses a rotating internal element to atomise water into a fine, wide-pattern cloud of droplets. Where the mist body jet generates atmosphere and the soft body spray produces a directed arc, the Spin Soft sits between the two: a soft, enveloping, rotationally-dispersed spray that lands on the skin as a fine, low-impact cloud rather than as discrete jets.

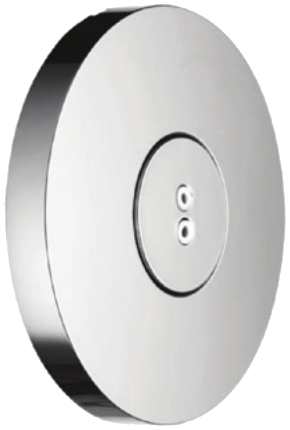

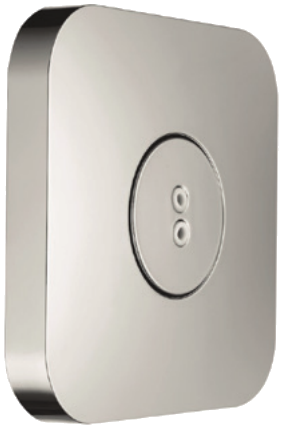

The Spin Soft is supplied in two formats — a soft-cornered square frontplate (80 × 80 mm) and a circular frontplate (Ø 100 mm) — and is available across the full Geyser Steam finish range. Specification is made on a per-installation basis to align with the surrounding material palette.
| Warranty | 2 years |
|---|---|
| Maximum continuous working pressure | 500 kPa |
| Recommended pressure range | 300 kPa |
| Maximum continuous working temperature | 70 °C |
| Frontplate width (square) | 80 mm |
| Frontplate height (square) | 80 mm |
| Frontplate diameter (round) | Ø 100 mm |
Specification of finish is made per-installation to align with the surrounding material palette. Chrome remains the default specification for the canonical Frigitorium environment.
Minimum total water consumption for the system at recommended operating pressure, scaled by number of installed body sprays.
Approximate flow rate per single Spin Soft body spray. The flow plateaus rapidly above 1.5 bar and is engineered to atomise rather than to deliver high volume.
Image and product photography courtesy of Geyser Steam / NORD Experience Showers. Product reference: Mist Body Jet Square.
